L-Shaped Aquarium

There is something undeniably spectacular about a custom built L shaped aquarium. By seamlessly wrapping around the corner of a room or acting as a dramatic peninsula room divider, an L shaped tank transforms standard aquarium keeping into high end interior architecture. It extends along two walls, offering incredibly long swimming lanes and multiple viewing angles that a traditional rectangular tank could never provide. Whether you are housing a massive vibrant reef system or a sprawling Amazonian river biotope, the L shape provides an unmatched level of immersion.

However, that breathtaking architectural design comes with a significant mathematical challenge. Figuring out exactly how much water your custom tank holds is an incredibly frustrating task.

If you have ever stood back, looked at the two intersecting arms of your aquarium, and wondered what its true capacity is, you are not alone. The basic length multiplied by width multiplied by height formula does not work here without some clever geometric adjustments. Guessing the volume of your massive custom display is a risk you simply cannot take. Every critical decision in the aquarium hobby, from purchasing a properly sized return pump to dosing life saving medications, depends entirely on knowing your exact water volume.

At Guidarium, we believe that complex custom geometry should never stand in the way of pristine fish care. In this comprehensive guide, we will break down the anatomy of the L shaped aquarium, explain why precise volume calculations are vital for a healthy ecosystem, guide you through taking accurate measurements without falling into common math traps, and explore how real world elements like massive rockworks impact your true water capacity.

The Unique Geometry of L Shaped Aquariums

To fully grasp why calculating the volume of your custom tank is so tricky, we need to look at the unique geometry at play. An L shaped aquarium is a complex polygon that fundamentally changes how you must approach your mathematical measurements.

Why the Double Arm Structure Complicates Volume Calculation

If you own a standard rectangular tank, finding the volume is incredibly straightforward. You measure the length, width, and height, multiply them together to find the cubic volume, and convert that number into gallons or liters.

An L shaped tank breaks this rule because it does not have a single uniform length or a simple rectangular footprint. Instead, it is composed of two rectangular arms that intersect. To calculate the volume, you might instinctively think to measure the first arm, calculate its volume, then measure the second arm, calculate its volume, and simply add the two numbers together.

While this sounds logical, it introduces a massive mathematical error that frequently plagues aquarists trying to manually calculate their capacity.

The Overlapping Corner: A Common Math Trap

The biggest mistake hobbyists make when calculating an L shaped tank is double counting the connecting corner.

If you take the full outer length of Arm A and multiply it by the width, you have calculated the area of that entire rectangle, including the corner square where the two arms meet. If you then take the full outer length of Arm B and multiply it by the width, you have calculated the area of that second rectangle, which again includes that exact same corner square.

When you add those two totals together, you have effectively counted the volume of the intersecting corner twice. Depending on how wide your aquarium is, this double counted square can falsely add tens or even hundreds of gallons to your final estimation. To get the true mathematical volume, you must calculate the area of both rectangles, add them together, and then subtract the area of that overlapping corner square before multiplying by the height of the tank. This complex geometric balancing act is exactly why using a specialized calculator is essential for custom builds.

Why Knowing Your Exact L Shaped Volume is Crucial

You might ask yourself if it really matters if your tank calculations are off by a few gallons on such a massive build. In the delicate science of advanced aquarium keeping, the answer is an absolute yes. Water volume is the core metric for almost everything you do in the hobby. On large custom tanks, being off by just 10 percent can mean a difference of fifty gallons, which can have disastrous consequences for your ecosystem.

Sizing Your Aquarium Equipment Correctly

Aquarium life support equipment, particularly return pumps, protein skimmers, and heaters, are strictly rated by water volume. If your volume math is incorrect, your expensive equipment choices will be entirely wrong.

Heating a massive custom L shaped tank effectively requires knowing the exact volume. The standard guideline is 3 to 5 watts of heating power per gallon of water. If you overestimate the size of your tank due to double counting the corner, you might buy a heating system that is far too powerful, risking a catastrophic overheating event. Conversely, if you underestimate the volume, your heaters will be overworked, failing to maintain a stable tropical temperature across both long arms of the tank.

Filtration and flow rely heavily on accurate volume calculations. A healthy tank needs a filter system with a specific turnover rate, usually cycling the entire volume of the tank 4 to 10 times per hour depending on the setup. Because L shaped tanks suffer from flow reduction at the 90 degree bend, knowing your exact total volume is the only way to ensure you purchase a return pump and supplemental wavemakers powerful enough to push water completely from the end of one arm all the way through the corner and down to the end of the other arm.

Precision Dosing for Medications and Water Conditioners

There is absolutely zero margin for error when dosing concentrated chemicals or medications in a massive aquatic ecosystem. An accurate aquarium volume calculator becomes a vital tool for ensuring the safety of your incredibly valuable livestock.

For routine maintenance in large setups, aquarists often use automated dosing pumps to add calcium, alkalinity, and magnesium to reef tanks, or liquid fertilizers to high tech planted tanks. These auto dosers must be programmed based on exact water volumes. Overdosing these elements can cause wild chemistry swings, crashing your pH and killing delicate corals or sensitive fish.

The danger is equally high when treating sick fish. Medications are highly concentrated and dosed specifically per gallon. If you assume your L shaped custom build holds 300 gallons, but the true water capacity is only 240 gallons due to geometric miscalculations, you could easily administer a lethal overdose of copper or antibiotic medication, wiping out thousands of dollars of livestock in a single day.

Managing Fish Stocking and Bioload Limits

Determining how many fish you can safely keep depends directly on your water volume. Fish produce waste, which breaks down into toxic ammonia. The massive colonies of beneficial bacteria in your biological filter process this waste, but they have a biological limit. The amount of waste your tank can handle is entirely dependent on how many gallons of water are available to dilute the toxins before the filter can process them.

L shaped tanks offer amazing swimming length, which might tempt you to buy massive predatory fish or large schools of tangs. However, you must base your stocking choices on the actual mathematical volume, not just the visual length of the tank. Knowing your exact true capacity ensures you do not overstock your custom masterpiece and crash your water quality.

How to Measure an L Shaped Tank for Accurate Calculations

To get a flawless result from any aquarium volume calculator, you must provide the correct inputs. Measuring an L shaped tank requires capturing specific dimensions along the outer edges of the glass.

Finding the Outer Lengths, Uniform Width, and Height

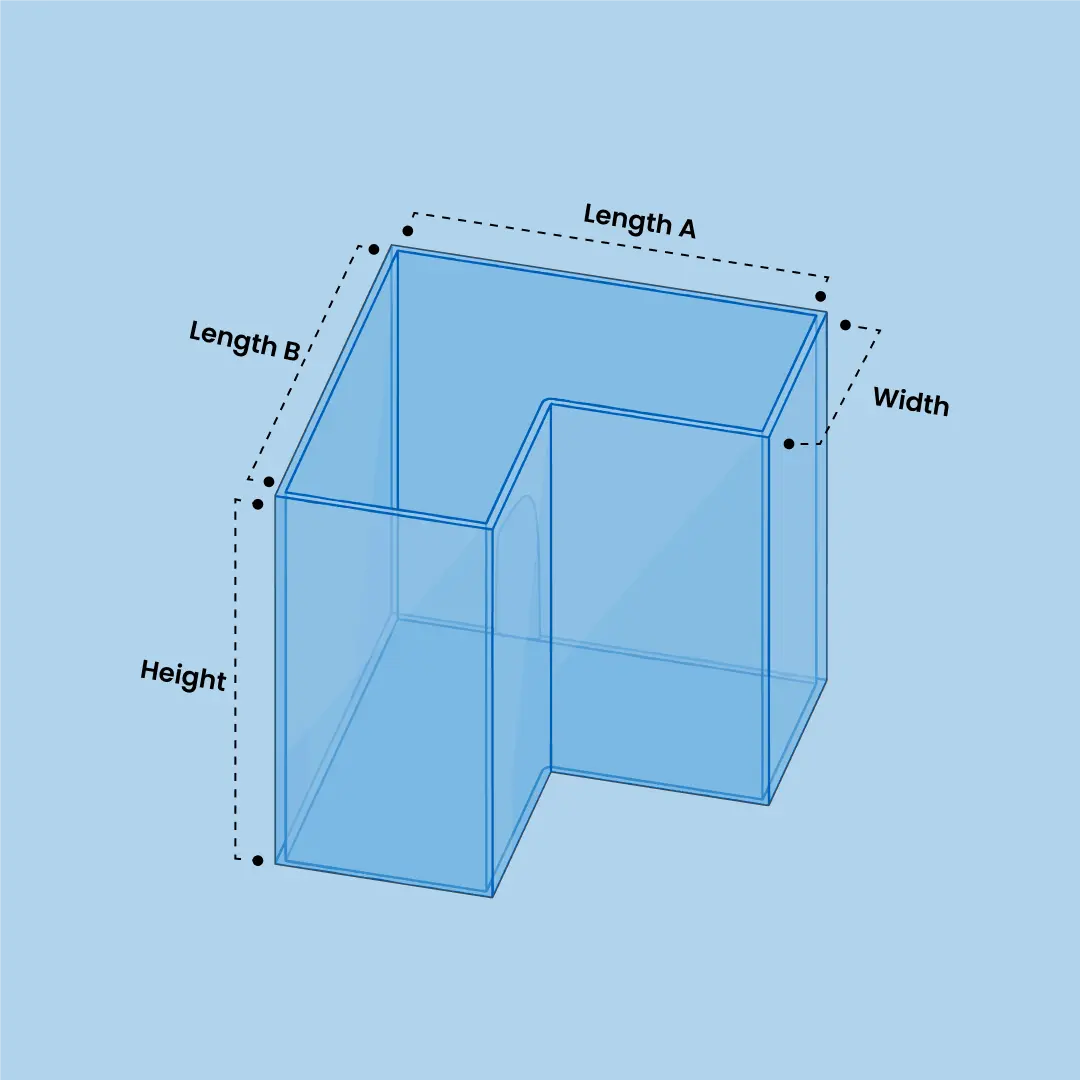

To calculate the properties of an L shaped aquarium using our standardized logic, you need to measure four specific things. Please note that for this calculation to work properly, the front to back width of both arms must be exactly the same.

1. Length A: Measure the full outer length of the first arm. Start your tape measure at the absolute back corner of the wall and measure all the way down to the far end of that specific arm.
2. Length B: Measure the full outer length of the second arm. Again, start your tape measure at the exact same absolute back corner of the wall and measure all the way down to the far end of the second arm.
3. Width: Measure the front to back depth of the tank. Because both arms are uniform, you only need to measure this once. Measure from the flat back panel straight across to the front viewing panel. Ensure this width is smaller than the lengths of your arms.
4. Height: Measure from the bottom glass panel straight up to the top rim of the aquarium.

One powerful feature of our specialized calculator is its ability to perform reverse height calculations. If you know you want an L shaped tank that holds exactly 200 gallons, and you know the maximum lengths your room can accommodate, the calculator can reverse engineer exactly how tall the tank needs to be to achieve that volume. Keep in mind, however, that the calculator cannot reverse calculate the lengths or width based on volume, as there are infinite combinations of dimensions that could equal the same gallon capacity.

The Mathematics Behind the L Shape

Once you input your measurements, the calculator handles the heavy geometric lifting.

Behind the scenes, the math formula calculates the area of Arm A (Length A multiplied by Width) and the area of Arm B (Length B multiplied by Width). It adds those two massive numbers together. Then, it calculates the area of the overlapping corner square (Width multiplied by Width) and subtracts it from the total to fix the double counting error. Finally, it takes that perfectly accurate base footprint area and multiplies it by the height of the tank to give you your flawless gross volume.

Attempting to do this math by hand, while keeping track of the overlapping corner and converting cubic inches or centimeters into gallons or liters, leaves a massive margin for human error. Utilizing our specialized calculator ensures that the complex geometry is handled perfectly every single time.

Inside vs Outside Dimensions: A Common Mistake

A very common mistake aquarists make when calculating the volume of custom builds is measuring the outside of the aquarium structure.

Custom L shaped aquariums are usually built with exceptionally thick glass or heavy duty acrylic to withstand the massive outward water pressure, especially around the vulnerable inner 90 degree seam. The glass can easily be three quarters of an inch to a full inch thick. Furthermore, custom builds often feature thick euro bracing or heavy cabinetry trimming along the top and bottom.

If you place your tape measure on the outside of the cabinetry or the outer glass, you are calculating the volume of the thick glass, the heavy silicone seams, and the wooden trim, not the actual water inside. To find your true maximum water capacity, you must always measure the inside dimensions of the tank. If the tank is already full or sealed, you must subtract the thickness of the glass (multiplied by two for each respective measurement) from your outer dimensions before doing the math. Neglecting glass thickness on a massive custom build will artificially inflate your volume calculation by ten to twenty gallons.

Real World Capacity: Custom Builds and Displacement

Even if your measurements are flawless and the geometric math is perfectly executed, the final number is still just the gross volume. Gross volume is the maximum amount of water the tank holds if it is completely empty and filled to the absolute brim. To find your net volume, which is the actual amount of water your fish are swimming in, we must account for real world aquarium factors.

The Truth About Custom L Shaped Builds

When dealing with massive custom builds, the mathematical gross volume is just your starting point. Unlike off the shelf standard tanks, there are no nominal retail sizes to worry about. Your math is the only baseline you have.

However, you must factor in the internal overflow boxes. Almost all L shaped aquariums are drilled and fitted with large internal overflow boxes made of black acrylic to hide the plumbing that runs down to the sump filtration system. These boxes sit inside the tank, taking up space but remaining dry or only partially filled on the inside. You must mathematically treat these overflow boxes as solid objects that subtract from your total available water volume.

Accounting for Substrate, Rocks, and Driftwood

The concept of water displacement is based on the Archimedes principle, which states that any object placed in water will displace an amount of water equal to its own volume. In the aquarium world, every bag of sand, every massive piece of driftwood, and every decorative rock you place in your tank steals water volume.

L shaped aquariums experience massive water displacement because they require a monumental amount of hardscape to fill the long visual stretches. To make an L shaped reef tank look natural, hobbyists usually build hundreds of pounds of live rock along the entire back wall, wrapping around the corner. This deep sand bed and heavy rockwork displaces a staggering amount of water.

As a general rule in the hobby, a standard layer of gravel and a few decorations will reduce your gross water volume by 10 percent. However, for heavily aquascaped custom tanks with massive stone structures spanning both arms, displacement can easily reduce your water volume by 15 to 20 percent. A custom L shaped tank with a gross volume of 250 gallons might only hold 200 gallons of actual swimming water once fully decorated.

Leaving Room at the Top: The Fill Line Factor

The final element affecting your true custom tank volume is the fill line. Aquariums are never filled until the water touches the absolute top edge of the glass. Doing so would cause water to spill over the sides every time a large fish splashed or you performed maintenance.

You must leave an air gap at the top of the tank. In systems utilizing sumps, the water level is dictated by the height of the overflow weir teeth. The water usually sits an inch or two below the top rim of the glass.

In a tank with a massive L shaped footprint, dropping the water level by just one or two inches removes a surprising amount of water across that massive surface area. When you combine the internal overflow boxes, the massive displacement from custom aquascaping, and the empty space left at the top fill line, your giant custom display operates with significantly less water than the raw outer dimensions might initially suggest.

Final Thoughts on Your L Shaped Environment

An L shaped aquarium is the pinnacle of custom aquatic design, offering a breathtaking way to bring vibrant life and mesmerizing movement into the architecture of your home or office. The endless swimming lanes and multiple viewing angles make it a truly spectacular piece of living art. However, guaranteeing the health, safety, and longevity of the delicate ecosystem living inside requires taking the complex mathematics of the custom shape seriously.

By understanding the geometry of intersecting rectangles, learning how to accurately measure your inside dimensions without double counting the corner, and recognizing the massive impact of water displacement caused by heavy custom aquascaping, you elevate yourself to the level of a master aquarist. Armed with the exact knowledge of your custom tank's true capacity, you can confidently purchase the correct heavy duty equipment, safely administer precise medications, and maintain a pristine, perfectly balanced architectural display for years to come.
