Bowfront Aquarium

There is something undeniably captivating about a bowfront aquarium. With its gently sweeping curved front panel, a bowfront tank offers a panoramic view of your underwater world, creating a sense of depth and immersion that a standard rectangular tank simply cannot match. Whether you are setting up a lush, planted aquascape, a vibrant community tank, or a dramatic cichlid display, the elegant aesthetic of the bowfront makes it a breathtaking centerpiece in any room.

However, that beautiful curve comes with a hidden catch. Calculating the exact water volume of your tank becomes a mathematical headache.

If you have ever tried to figure out exactly how many gallons or liters your bowfront holds, you already know that the standard Length × Width × Height formula goes completely out the window. But in the aquarium hobby, guessing your water volume is a dangerous game. Everything from the size of your heater to the dosage of life saving medications relies on knowing your tank’s true capacity.

At Guidarium, our goal is to take the guesswork out of the hobby so you can focus on enjoying your fish. In this comprehensive guide, we will explore why the geometry of curved glass is so tricky, why absolute precision matters for your fish’s health, how to take accurate measurements, and how real world factors like rocks and gravel impact your true water volume.

The Unique Geometry of Bowfront Aquariums

To understand why calculating your bowfront’s volume is so difficult, we first need to look at the unique geometry that gives these tanks their signature shape. A bowfront is not just a fancy rectangle. It is a complex hybrid of straight lines and sweeping arcs that fundamentally changes the physics and volume of the enclosure.

Why the Curved Front Panel Complicates Volume Calculation

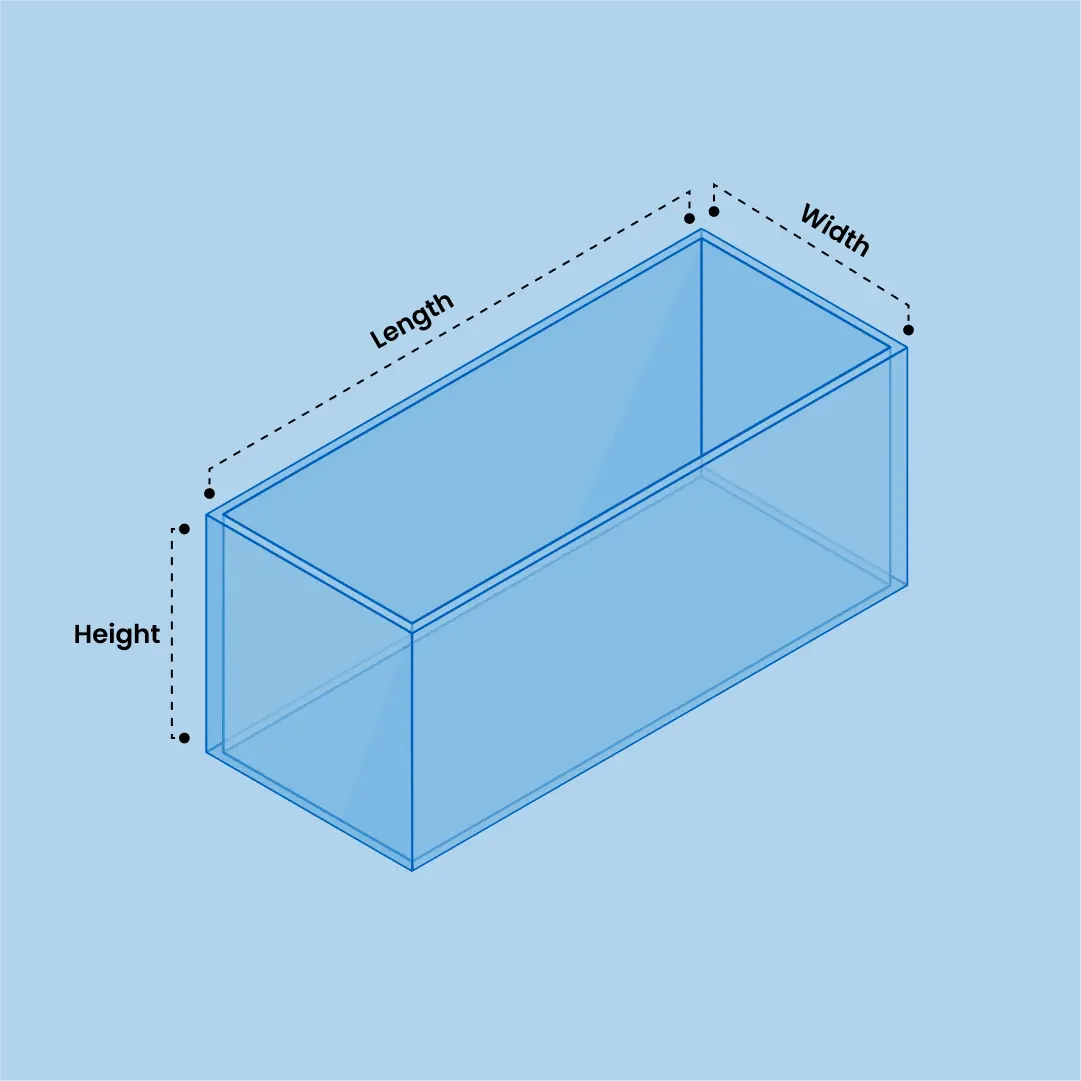

For a standard rectangular aquarium, calculating the volume is straightforward. You measure the length, width, and height, multiply them together, and convert the cubic inches or centimeters into gallons or liters. It is basic elementary school math.

A bowfront aquarium, however, completely breaks this rule. The back and sides of the tank form a standard rectangle, but the front panel bows outward in a convex curve. Mathematically speaking, the footprint of a bowfront tank is a rectangle combined with a circular segment (a partial circle).

This means that the depth (front to back width) of the tank is constantly changing depending on where you measure it. At the extreme left and right corners, the tank is relatively shallow. As you move toward the center, the tank gets progressively deeper, reaching its maximum depth at the very peak of the bow. Because the depth is not uniform, you cannot simply multiply the dimensions together. You have to calculate the volume of the rectangular back half, calculate the volume of the curved front half, and add them together, a process that frustrates many hobbyists and leads to wildly inaccurate estimations.

The Optical Illusion of Depth vs Actual Water Volume

Beyond the complex math, the curved glass of a bowfront tank creates a powerful optical illusion that can trick even experienced aquarists. When water fills a curved glass pane, the tank acts as a giant magnifying lens. Light refracts (bends) as it passes through the water and the curved glass, magnifying the fish, the plants, and the hardscape inside.

This magnifying effect pulls the background forward and stretches the visual field, making the tank appear to have vastly more depth and volume than it actually does. A 36 gallon bowfront, for example, often looks like it holds the same amount of water as a 50 gallon standard tank.

While this visual depth is exactly why we love bowfronts, it can cause hobbyists to drastically overestimate the swimming space and water capacity of their tank. Relying on your eyes rather than hard mathematics can lead you to believe you have a larger buffer of water than you actually possess, which can quickly lead to overcrowded tanks and unstable water parameters.

Why Knowing Your Exact Bowfront Volume is Crucial

You might be wondering if it really matters if your tank is 42 gallons instead of 46 gallons. In the aquarium hobby, the answer is a resounding yes. Water volume is the foundational metric upon which almost every aspect of aquarium husbandry is built. Knowing your exact capacity is not just a matter of trivia. It is the key to maintaining a stable, healthy ecosystem.

Sizing Your Aquarium Equipment Correctly

Aquarium life support systems, specifically filters and heaters, are rated by water volume. If your volume calculations are off, your equipment will be, too.

Take heating, for example. The general rule of thumb is that you need between 3 to 5 watts of heating power per gallon of water to maintain a stable tropical temperature. If you overestimate the volume of your bowfront, you might purchase a heater that is far too powerful. An oversized heater will cycle on and off too rapidly, stressing the internal thermostat and potentially leading to a malfunction that could overheat your tank. Conversely, an undersized heater will struggle to keep up on cold nights, leaving your fish vulnerable to temperature swings and stress induced diseases like Ich.

The same logic applies to filtration. A healthy aquarium requires a filter with a specific GPH (Gallons Per Hour) turnover rate, usually 4 to 6 times the total volume of the tank per hour for standard setups, and up to 10 times for messy eaters like cichlids or goldfish. If you do not know your true volume, you cannot accurately select a filter that will keep your water crystal clear and free of toxic ammonia.

Precision Dosing for Medications and Water Conditioners

There is no margin for error when dosing chemicals or medications in a closed aquatic ecosystem. This is where an accurate aquarium volume calculator goes from being helpful to being absolutely vital.

Routine maintenance requires the use of water conditioners (like dechlorinators) or liquid fertilizers for planted tanks. While a slight overdose of dechlorinator is usually harmless, an overdose of concentrated liquid fertilizer can trigger massive, tank crashing algae blooms.

The stakes are much higher when treating sick fish. Medications formulated to treat parasites (like copper based treatments), fungal infections, or bacterial blooms are highly concentrated and strictly dosed per gallon. If you assume your tank holds 46 gallons, but its true water capacity is only 35 gallons, you could inadvertently administer a lethal overdose of medication, killing the very fish you are trying to save. On the flip side, under dosing because you underestimated your volume can result in the medication being entirely ineffective, allowing the disease to spread and potentially creating medication resistant strains of parasites.

Managing Fish Stocking and Bioload Limits

How many fish can you safely keep in a bowfront aquarium? The answer depends entirely on the water volume and the available surface area. Fish produce waste, which breaks down into toxic ammonia. The beneficial bacteria in your tank process this waste, but they can only handle so much. The total amount of waste your tank can process is known as its bioload limit, and this limit is directly tied to the total gallons of water diluting that waste.

Because of the curved front, bowfront aquariums have a slightly smaller footprint (surface area) than a standard rectangular tank of the same length and maximum width. Surface area is critical for oxygen exchange. Therefore, knowing your exact volume ensures you do not overstock the tank. Even if your bowfront appears massive due to the optical illusion of the curved glass, the actual math might reveal that you have less water volume than expected, meaning you need to stock fewer fish to keep the environment stable and healthy.

How to Measure a Bowfront Tank for Accurate Calculations

To get an accurate result from any aquarium volume calculator, you must input the correct measurements. Measuring a standard rectangle requires just three straight lines. Measuring a bowfront requires precision, patience, and a specific technique to capture the changing depth of the curve.

Finding the True Width and Bow Depth

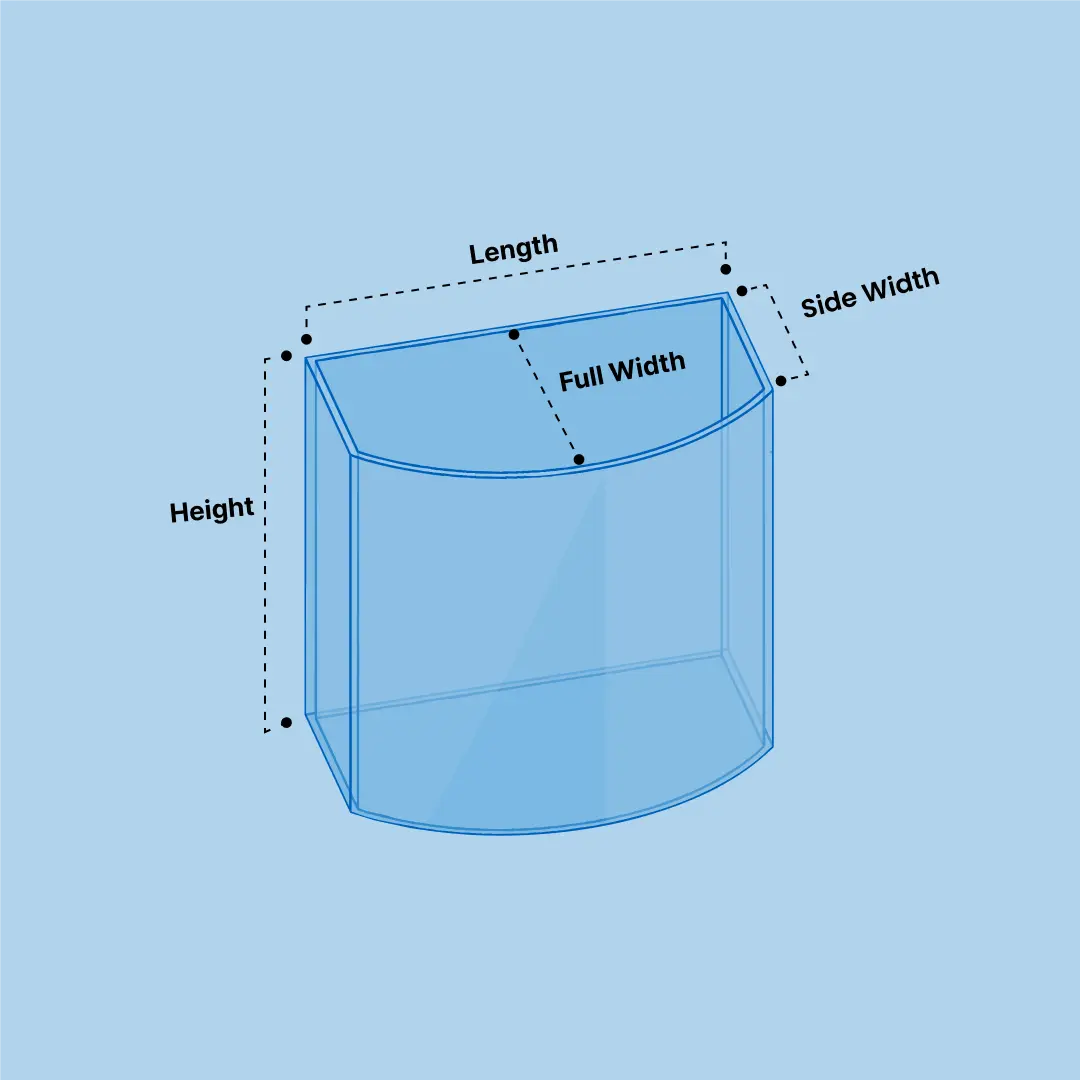

To calculate the volume of a bowfront, you need to gather four critical dimensions: the length, the height, the side width (end cap width), and the center width (the maximum depth).

1. Length: Measure straight across the flat back panel of the aquarium from left to right.
2. Height: Measure from the bottom glass panel to the top rim.
3. Side Width: Measure the flat side panels of the tank, from the back corner to the front corner where the curved glass begins. Both side panels should be identical.
4. Center Width (Maximum Depth): This is the trickiest part. You need to measure the distance from the flat back panel to the absolute deepest point of the front curve, right in the middle of the tank.

Pro Tip for Measuring the Bow: Do not try to bend a tape measure around the glass. Instead, place a stiff straight edge (like a yardstick or a piece of wood) perfectly flat across the top frame of the tank, from the left front corner to the right front corner. Then, use a ruler to measure the distance from that straight edge out to the deepest peak of the curved glass. Adding this bow depth to your side width will give you your true center width.

The Mathematics Behind the Curve

Once you have your measurements, the math required to find the volume involves breaking the tank into two imaginary shapes. First, you calculate the volume of the rectangular base (Length × Side Width × Height). Next, you have to calculate the volume of the curved front section.

In geometry, this front section is calculated as a circular segment. You must use the length of the tank (the chord) and the depth of the bow to find the radius of the imaginary circle the front glass is cut from. From there, you calculate the area of the circular segment and multiply it by the height of the tank. Finally, you add the rectangular volume and the circular segment volume together.

If this sounds like a nightmare of pi, chords, radiuses, and complex geometry, you are absolutely right. Doing this by hand leaves massive room for human error. This is exactly why specialized calculators are utilized by hobbyists to handle the heavy lifting of the geometric formulas.

Inside vs Outside Dimensions: A Common Mistake

One of the most frequent mistakes aquarists make when calculating tank capacity is measuring the outside of the aquarium frame.

Aquariums are made of thick glass or acrylic, and they are held together by bulky plastic rims. On larger bowfronts, the glass can easily be 3/8 inch to 1/2 inch thick to withstand the outward pressure of the water against the curve.

If you measure the outside of the tank, you are calculating the volume of the glass, the silicone, and the plastic frame, not just the water. To find your true water capacity, you must always measure the inside dimensions. If you can only measure the outside of an already running tank, make sure to subtract the thickness of the glass (multiplied by two, for both sides) from your overall measurements before doing your math. Failing to account for glass thickness can easily add several phantom gallons to your final calculation.

Real World Capacity: Standard Sizes and Displacement

Even if you execute the measurements flawlessly and the math is perfectly accurate, the number you end up with is still just the gross volume, the maximum amount of water the tank holds if it is entirely empty and filled to the absolute point of overflowing. However, an empty glass box is not an aquarium. To find your net volume (the actual water in the tank), we have to look at real world applications.

The Truth About Popular Bowfront Sizes

When you walk into a pet store, you will see bowfront aquariums sold in standard, recognizable sizes. The most common off the shelf models are the 16 gallon, 36 gallon, 46 gallon, and 72 gallon bowfronts.

It is important to understand that these numbers are often nominal sizes used for retail marketing. Manufacturers tend to round up to the nearest clean number to make the product easier to sell. For example, a commercially sold 36 gallon bowfront might mathematically calculate out to 34.8 gallons of gross volume. A 46 gallon bowfront might actually hold 44.5 gallons when measured strictly by interior glass dimensions.

While this difference of a gallon or two might seem small, it is the first deduction in finding your true water capacity. Never rely blindly on the label on the cardboard box. Always measure the tank yourself.

Accounting for Substrate, Rocks, and Driftwood

The Archimedes principle dictates that any object submerged in water will displace an amount of water equal to its own volume. In the aquarium hobby, this means every piece of gravel, every rock, and every piece of driftwood you add to the tank steals water volume. This concept is known as water displacement.

Aquascaping relies heavily on hardscape materials. If you add two inches of nutrient rich soil and gravel to the bottom of a 46 gallon bowfront, you are instantly displacing several gallons of water. If you build a massive, intricate cave system using heavy dragon stone or seiryu stone, you are displacing even more.

As a general rule of thumb in the aquarium hobby, heavy hardscape and substrate will reduce your total gross water volume by 10% to 15%. In heavily planted or densely aquascaped tanks (like an Iwagumi setup), displacement can reduce the water volume by as much as 20%. Therefore, an empty 46 gallon bowfront may only hold 36 to 38 gallons of actual water once it is fully decorated and ready for fish.

Leaving Room at the Top: The Fill Line Factor

The final factor in calculating your true bowfront water volume is the fill line. No aquarist fills their tank until the water is touching the very top edge of the glass rim. Doing so would result in water spilling over the sides every time you put your hand in the tank.

Furthermore, you need to leave an air gap at the top of the tank for several vital reasons. Hang On Back (HOB) filters require a slight drop for the water to cascade and agitate the surface, which promotes essential oxygen exchange. Heaters and filter intake tubes have cords that need space to exit the tank. Additionally, many fish species are known jumpers, and leaving a one to two inch gap beneath the lid provides a safety buffer.

In a bowfront tank, dropping the water level by just one or two inches removes a significant amount of water across that large, curved surface area. When you combine the marketing discrepancies of nominal sizing, the water displaced by your substrate and hardscape, and the empty space left at the fill line, your 72 gallon bowfront may actually only be operating with 55 gallons of water.

Final Thoughts on Your Bowfront Environment

Owning a bowfront aquarium is a highly rewarding experience. The unique aesthetic adds an element of elegance and panoramic beauty that standard tanks cannot replicate. However, ensuring the long term health, safety, and stability of your aquatic pets requires treating the math with the respect it deserves.

By understanding how the geometry of the curve works, learning how to take precise internal measurements, and accounting for real world factors like water displacement and fill lines, you elevate yourself from a casual fish keeper to a responsible aquarist. Armed with the exact knowledge of your tank's true capacity, you can size your equipment perfectly, dose medications safely, and create a thriving, perfectly balanced ecosystem for years to come.
