Flat-Back Hexagon Aquarium

There is a distinct architectural beauty to a flat back hexagon aquarium. By taking the classic, flat wall profile of a standard rectangular tank and pushing the front outward into a multi faceted, panoramic display, this unique shape creates an immediate focal point in any room. Also known as a half hexagon, this design provides five distinct viewing angles, allowing you to observe your underwater ecosystem from almost anywhere in the living space. Whether you are building a towering planted aquascape or a vibrant community tank, the flat back hexagon offers a striking geometric elegance that standard fish tanks simply cannot match.

However, the stunning visual appeal of those angled front panels comes with a massive mathematical headache. Figuring out exactly how much water your six sided aquarium actually holds is far from a simple calculation.

If you have ever stared at the complex angles of your flat back hexagon and wondered what its true water capacity is, you are certainly not alone. The traditional length multiplied by width multiplied by height formula is completely useless for a footprint this complex. Guessing the volume of your aquarium is a dangerous game, as every critical decision in the fish keeping hobby, from sizing your filtration system to dosing life saving medications, relies entirely on knowing your exact water volume.

At Guidarium, we believe that complex geometry should never prevent you from providing the best possible care for your fish. In this comprehensive guide, we will break down the exact anatomy of the flat back hexagon shape, explain why precise volume calculations are absolutely vital for a healthy aquatic ecosystem, guide you through taking accurate measurements of all five necessary dimensions, and explore how real world elements like substrate and heavy rockwork impact your true net water capacity.

The Unique Geometry of Flat Back Hexagon Aquariums

To fully understand why calculating the volume of your half hexagon tank is so difficult, we need to look closely at the complex geometry at play. This shape is what mathematicians call a composite shape, and it fundamentally changes how water occupies the physical space, rendering traditional aquarium math completely ineffective.

Why the Six Sided Shape Complicates Volume Calculation

If you own a standard rectangular tank, finding the volume is incredibly easy. You measure the length, width, and height, multiply them together, and convert the resulting cubic inches or centimeters into gallons or liters.

A flat back hexagon aquarium completely breaks those elementary rules because its footprint is not a single uniform shape. To calculate the base area of a half hexagon, you actually have to imagine the tank as two completely separate geometric shapes mashed together.

The back half of the tank is a standard rectangle. The front half of the tank, featuring the angled sides and the shorter front panel, forms an isosceles trapezoid. To find the total volume, you must first calculate the area of the back rectangular section. Then, you must calculate the area of the front trapezoidal section. Finding the area of that trapezoid requires using the Pythagorean theorem to calculate its hidden internal height based on the angles of the slanted sides. Finally, you add the area of the rectangle and the area of the trapezoid together, and multiply that entire composite base area by the height of the tank.

For the average aquarium hobbyist simply trying to figure out how much water conditioner to add during a water change, this level of multi step geometry is incredibly frustrating and leaves a massive margin for human error.

The Optical Illusion of Depth vs Actual Water Volume

Adding to the mathematical complexity is the powerful optical illusion created by the angled glass panels. The multiple facets of a flat back hexagon create unique refractions and reflections. Depending on the angle from which you view the tank, the interior can look incredibly vast. The protruding trapezoid front makes the center of the tank feel vastly deeper than the sides.

This visual distortion makes the aquarium incredibly beautiful, but it can easily trick your brain into overestimating the water capacity. Relying on your eyes rather than hard geometric calculations can lead you to believe you have a much larger buffer of water than you actually possess. Assuming your tank holds more water than it mathematically does is the first step toward overcrowding your fish and degrading your water quality.

Why Knowing Your Exact Half Hexagon Volume is Crucial

You might ask yourself if it really matters if your volume calculations are off by a few gallons. In the delicate science of aquarium keeping, the answer is an absolute yes. Water volume is the core metric for almost everything you do in the hobby. Knowing your exact capacity is the foundation of maintaining a stable, healthy aquatic ecosystem.

Sizing Your Aquarium Equipment Correctly

Aquarium life support equipment, particularly heaters and filtration systems, are strictly rated by water volume. If your volume math is incorrect, your equipment choices will be fundamentally flawed.

Heating a flat back hexagon effectively requires knowing your exact capacity. The standard guideline is 3 to 5 watts of heating power per gallon of water to maintain a stable tropical environment. If you overestimate the size of your tank due to its bulky appearance, you might buy a heater that is far too powerful. An oversized heater will turn on and off rapidly, a process that wears out the internal thermostat and can cause it to stick in the on position, disastrously overheating your tank. Conversely, an undersized heater will fail to keep the water warm enough during cold nights, stressing your fish and leaving them vulnerable to parasitic infections like Ich.

Filtration relies just as heavily on accurate volume calculations. A healthy tank needs a filter with a specific Gallons Per Hour turnover rate. Typically, you want a filter that cycles the entire volume of the tank 4 to 6 times per hour. Flat back hexagon tanks have four internal corners in the front viewing area where water flow can stall and debris can accumulate. If you do not know your true volume, you cannot select a filter or powerhead strong enough to ensure proper, sweeping circulation throughout those tricky angled corners.

Precision Dosing for Medications and Water Conditioners

There is absolutely zero margin for error when dosing concentrated chemicals or liquid medications in your closed aquatic ecosystem. An accurate aquarium volume calculator becomes a vital tool for ensuring the safety and survival of your fish.

For routine maintenance, you use water conditioners to remove toxic chlorine or liquid fertilizers to feed your live aquatic plants. While overdosing a basic dechlorinator is usually harmless, overdosing liquid fertilizers can result in massive, uncontrollable algae blooms that smother your plants.

The danger is magnified exponentially when treating sick fish. Medications for parasites, fungal infections, or bacterial diseases are highly concentrated and must be dosed specifically per gallon. If you assume your flat back hexagon holds 60 gallons, but the true water capacity is only 48 gallons, you could administer a lethal overdose of medication. On the other hand, under dosing because you underestimated your volume will render the treatment completely ineffective, allowing the disease to mutate and wipe out your entire tank.

Managing Fish Stocking and Bioload Limits

Determining how many fish you can safely keep depends directly on your total water volume and your surface area. Fish produce waste, which breaks down into toxic ammonia. The beneficial bacteria in your biological filter process this waste, but they have a biological limit. The total amount of waste your tank can handle is called its bioload limit, and this is entirely dependent on how many actual gallons of water are available to dilute the toxins.

Flat back hexagon tanks are often built taller than standard rectangular tanks to emphasize their unique geometric shape. However, taller tanks have a smaller surface area relative to their total volume. Gas exchange, where vital oxygen enters the water and toxic carbon dioxide escapes, happens exclusively at the surface. Knowing your exact volume ensures you do not overstock the tank, push the bioload past its breaking point, and inadvertently suffocate your fish.

How to Measure a Flat Back Hexagon Tank for Accurate Calculations

To get a flawless result from our specialized aquarium volume calculator, you must provide the correct inputs. Measuring a flat back hexagon requires a bit more effort than a standard tank because you must capture five distinct dimensions to accurately map the composite shape.

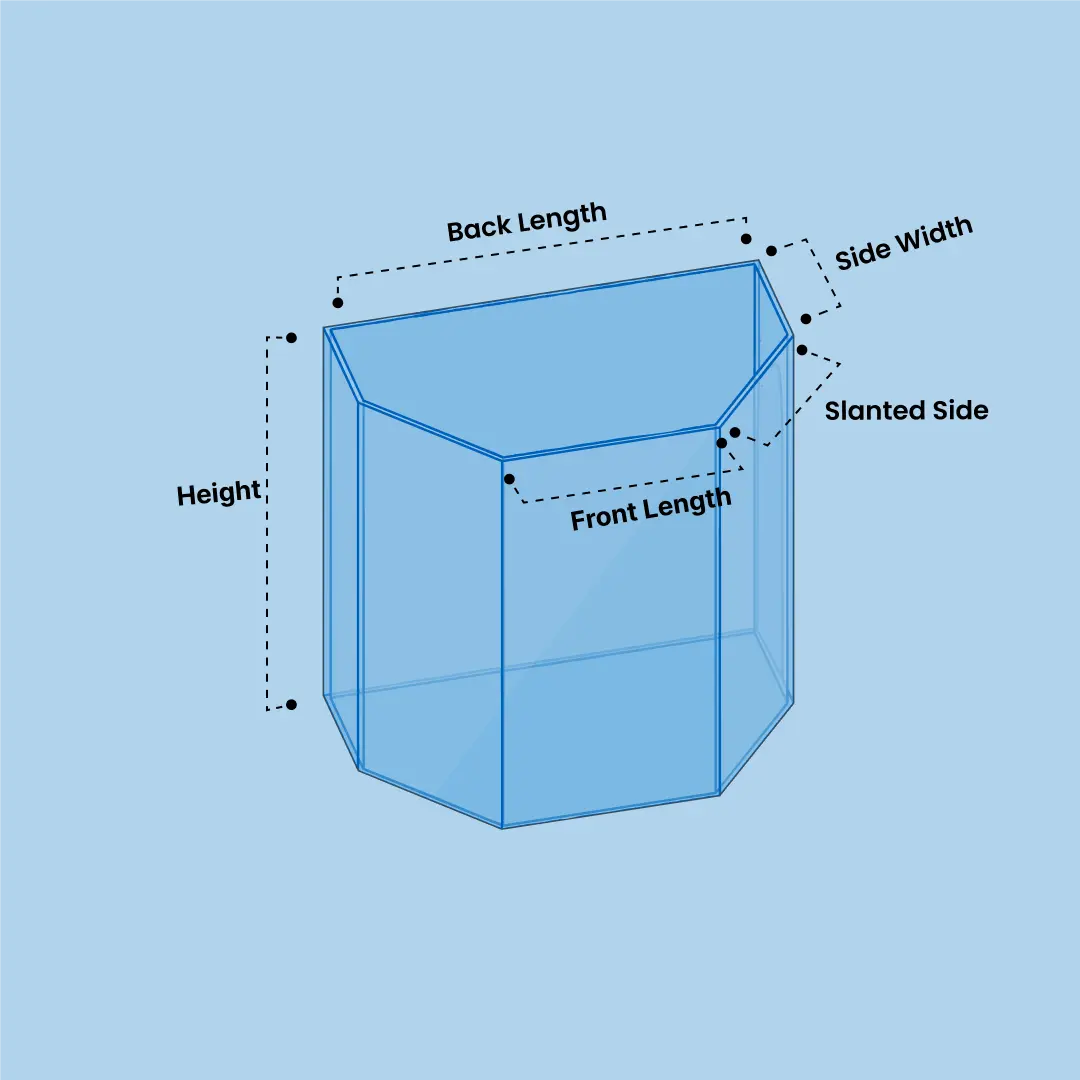

Finding the Five Critical Dimensions

To calculate the properties of a flat back hexagon, you need to measure the lengths of the specific panels that make up the footprint, as well as the height.

1. Back Length: Measure the length of the single, flat back panel that sits against your wall, from the left back corner to the right back corner.
2. Front Length: Measure the length of the shorter, flat panel at the very front of the tank that faces the room directly.
3. Side Width: Measure the depth of the straight rectangular portion of the tank. This is the flat side panel that connects the back corner to the point where the angled glass begins. Both side panels should be identical.
4. Slanted Side: Measure the width of the angled front side panel. This is the piece of glass that connects the straight side panel to the flat front panel. Both slanted sides should be identical.
5. Height: Measure from the bottom glass panel straight up to the top rim of the aquarium.

One important note regarding our calculator logic for this specific shape. Due to the massive mathematical complexity of having four independent variables making up the base area, calculating the base dimensions backwards from a known volume is not supported. However, if you have your panel measurements, the calculator will flawlessly execute the complex geometry to find your exact volume and height.

The Mathematics Behind the Composite Shape

Once you have your five measurements, the math required involves splitting the tank into the rectangle and the trapezoid mentioned earlier.

The calculator first finds the area of the back rectangular section by multiplying the Back Length by the Side Width. Next, it must find the area of the front trapezoid. To do this, it takes the difference between the Back Length and the Front Length, divides it in half, and uses the Slanted Side measurement in the Pythagorean theorem to find the invisible perpendicular height of the trapezoid. It then uses that height to find the trapezoidal area. Finally, it adds the rectangular area and the trapezoidal area together, and multiplies the grand total by the height of your tank.

Attempting to do this advanced geometry by hand, while simultaneously converting cubic inches or centimeters into gallons or liters, leaves a massive margin for human error. Utilizing a specialized calculator ensures that the complex geometry is handled perfectly every single time.

Inside vs Outside Dimensions: A Common Mistake

A very common mistake aquarists make when calculating their volume is measuring the outside of the aquarium frame.

Glass and acrylic used for aquariums are exceptionally thick, especially in multi faceted tanks where the seams must withstand varying outward pressure. Furthermore, these tanks feature thick plastic or wood framing along the top and bottom to hide the silicone joints.

If you place your tape measure on the outside of the frame, you are calculating the volume of the thick glass, the heavy silicone seams, and the plastic trim, not the actual water inside. To find your true maximum water capacity, you must always measure the inside dimensions of the tank. If the tank is already full and running, and you can only measure the outside, you must subtract the thickness of the glass from all of your horizontal measurements before doing the math. Neglecting glass thickness will artificially inflate your volume calculation by several gallons.

Real World Capacity: Standard Sizes and Displacement

Even if your measurements are flawless and the geometric math is perfectly executed, the final number you arrive at is still just the gross volume. Gross volume is the maximum amount of water the tank holds if it is completely empty and filled to the absolute point of overflowing. To find your net volume, which is the actual amount of water your fish are actively swimming in, we must account for real world aquarium factors.

The Truth About Popular Half Hexagon Sizes

When shopping for flat back hexagon aquariums, you will frequently see them sold in standard nominal sizes, such as the popular 35 gallon half hex or the large 60 gallon flat back display.

It is vital to understand that these numbers are almost always rounded up for retail marketing purposes. Manufacturers prefer clean, recognizable numbers that sound impressive. A commercially sold 35 gallon half hexagon might mathematically calculate out to 33.2 gallons of gross interior volume. A 60 gallon model might actually hold closer to 56 gallons when measured by the true inner glass boundaries.

While a difference of three or four gallons might seem trivial to a beginner, it is the first major deduction in discovering your true water capacity. Never trust the label on the retail cardboard box. Always take your own internal measurements.

Accounting for Substrate, Rocks, and Driftwood

The concept of water displacement is based on the Archimedes principle, which states that any object placed in water will displace an amount of water exactly equal to its own volume. In the aquarium world, this means every single bag of gravel, every piece of decorative driftwood, and every heavy rock you place in your tank actively steals water volume.

Because flat back hexagon tanks offer such incredible depth from front to back, they invite massive aquascaping layouts. Hobbyists frequently build towering, intricate rock walls in the back rectangular section and slope thick layers of planted aquarium soil down toward the front viewing panels. This heavy substrate bed and massive rockwork displaces a staggering amount of water.

As a general rule in the hobby, a standard layer of gravel and a few artificial decorations will reduce your gross water volume by 10 percent. However, for heavily aquascaped flat back hexagons with massive stone structures built into the center, displacement can easily reduce your water volume by 15 to 20 percent. A heavily decorated 60 gallon flat back hexagon might only hold 45 gallons of actual, treatable water.

Leaving Room at the Top: The Fill Line Factor

The final element affecting your true half hexagon tank volume is the fill line. Aquariums are never filled until the water touches the absolute top edge of the glass rim. Doing so would cause water to spill over the sides every time you cleaned the glass, performed maintenance, or fed the fish.

You must leave an air gap at the top of the tank for several highly important reasons. Hang on back filters require a slight drop for water to agitate the surface, which is crucial for promoting oxygen exchange. Equipment cords for heaters and powerheads need space to route out the back of the canopy. Additionally, many popular aquarium fish are prone to jumping when startled, and leaving a safe gap below the lid prevents tragic accidents.

In a tank with a wide, complex footprint like a half hexagon, dropping the water level by just one or two inches removes a surprising amount of water volume. When you combine the marketing exaggerations of standard sizes, the massive displacement from deep aquascaping, and the empty space left at the top fill line, your beautifully angled flat back hexagon operates with significantly less water than you might initially think.

Final Thoughts on Your Flat Back Hexagon Environment

A flat back hexagon aquarium is a brilliant way to bring multi dimensional life, light, and movement into your home while maintaining the space saving benefits of a flat wall profile. The sweeping angled front and immersive depth make it a truly spectacular piece of living geometric art. However, guaranteeing the health, safety, and longevity of the fish living inside requires taking the complex mathematics of the composite shape seriously.

By understanding the geometry of the combined rectangle and trapezoid, learning how to accurately measure your five critical dimensions, and recognizing the massive impact of water displacement caused by heavy aquascaping, you elevate yourself from a casual fish keeper to a highly capable aquarist. Armed with the exact knowledge of your tank's true net capacity, you can confidently purchase the correct equipment, safely administer delicate medications, and maintain a pristine, perfectly balanced multi faceted display for years to come.
